外设
This article describes supported add-on peripherals for RouterBOARD hardware devices.
蜂窝式调制解调器
| 型号 | 经过测试的RouterOS版本 | 注释 | 格式 | 支持直通 | 技术 |
|---|---|---|---|---|---|
| Alcatel IK40 | v6.41RC11 | LTE interface, Modem can be configured only through modems configuration WEB page. | USB | N | LTE |
| Alcatel IK41 | v6.48 | Config-less LTE interface | USB | N | LTE |
| Android usb tethering interface | v6.7 | Some settings are ignored. | USB | ? | LTE |
| AnyData ADU-E630WH | v6 | ( aka "USB Wireless HSDPA/UMTS 2.1GHz GSM/GPRS/EGPRS 900/17000MHz/CDMA 1x EVDO Rev.A") | USB | 3G | |
| BandRich C501 | v5.25 and v6.0 | USB | ? | LTE | |
| D-link DWM-157 | v6.xx | Works! Data Channel: 2, Info Channel: 3,Modem Init: AT+CFUN=1, vendor-id="0x2001" device-id="0x7d02" Some info from modem: > H/W Ver.: B1, F/W Ver.: 2.0.1eu, revision: +CGMR: MOLY.WR8.W1231.DC.WG.MP.V3, 2013/04/09 02:08 Different HW revisions might not work with RouterOS | USB | 3G | |
| D-link DWM-222 | v6.38 | Multiple modem versions with same marketing name exist, only H/W ver: A1 supported as config-less LTE interface | USB | N | |
| Dell DW5821e | v7.4beta4 and higher | MBIM driver. Revision: T77W968.F1.0.0.5.2.VZ.013 044 | M.2 | 3G,LTE | |
| Dell Wireless 5530 HSPA | v6.1 and higher | Data channel 0, Info channel 0, init: AT+CFUN=1 (needs manualy change profile by command AT*ENAP=1,1) | MiniPCI-e | 3G | |
| Ericsson F5521gw | v6.x and higher | MiniPCI-e | 3G | ||
| Fibocom FM150-AE | v7.1beta5 | MBIM driver. Revision: 89603.1000.00.01.01.03 | M.2 | 3G, LTE, 5G | |
| Fibocom NL-952-EAU | v7.1beta5 | MBIM driver. Revision: 19600.7000.00.04.01.05 | M.2 | 3G, LTE | |
| Marvell PXA1802 based modems | v7.2.2 | Vendorid=0x1286 deviceid=0x4e31 | mini-PCIe | ||
| Huawei E153 | v6.31< and higher | USB | |||
| Huawei E171 | v6.xx | Works! ppp interface, vendorid=0x12d1 deviceid=0x140c | USB | 3G | |
| Huawei e3131 | v6.xx and higher | ppp interface | USB | 3G | |
| Huawei E3372h, E5576h, E8372h | v6.8 | Config-less LTE interface for modems with vendor-id="0x12d1" device-id="0x14db" Models with suffixes -320 and -608 will not work with RouterOS v6, please use v7 instead. |
USB | N | LTE |
| Huawei E3276-150 | v6.xx | ppp interface | USB | ? | LTE |
| Huawei E3351 | v6.24 and higher | USB | 3G | ||
| Huawei E3531 | v6.24 or 6.40RC25 | There are different versions of this modem E3531-6 works from version 6.40RC25 as ppp, mbim supported only from RouterOS V7 | USB | 3G | |
| Huawei e398 | v6.xx and higher | ppp interface | USB | LTE | |
| Huawei E5377 | v6.36.1 | MIFI unit. No serial support, but works with IP on LTE interface | USB | ? | LTE |
| Huawei E5673s-609 | v6.xx | LTE interface | USB | ? | LTE |
| Huawei K5160 | v6.37 v7.0beta6 |
v6 and v7 - config-less LTE interface v7 - by default will try to use modem in MBIM mode |
USB | N | |
| Huawei K5161 | v6.47 | Config-less LTE interface | USB | N | |
| Huawei ME909s-120 | v6.28 | Recommended modem firmware version 11.617.24.00.00 To reduce LTE interface IP subnet mask to /32 configure modem with at-chat command: /interface lte at-chat [find] input="AT^CUSTFEATURE=3,1" |
MiniPCI-e | Y | LTE |
| Huawei ME909u-521 | v6.11 | MiniPCI-e | N | LTE | |
| Huawei MU609 | v6.11 | MiniPCI-e | ? | 3G | |
| Huawei MU709s-2 | v6.28 | MiniPCI-e | Y | 3G | |
| Jaton MT421e | v6.40RC32 | LTE interface with Ethernet emulation (no configuration possible), LTE supported bands 42/43 | MiniPCI-e | ? | LTE |
| Netgear Unite Explore 815S | v6.41 | MIFI unit. No serial support, but works with IP on LTE interface. | USB | Y | LTE |
| Novatel USB730L | v6.41RC6 | LTE interface | USB | ? | LTE |
| Olivetti Olicard 500 | v6.41RC11 | ppp interface | USB | ? | LTE |
| Quectel EC20/EC21 | v6.xx | ppp interface, there is page in wiki about Quectel: article | MiniPCI-e | ? | LTE |
| Quectel BG77 | v6.47 | Serial/PPP interface, single AT/modem channel | OEM module | N | IoT |
| Quectel BG95-M3 | v6.47 | Serial/PPP interface, single AT/modem channel Will not work in wAP R ac boards. |
mini-PCIe | N | 2G/IoT |
| Quectel BG96 | v6.45 | Serial/PPP interface, 2x AT/modem channels | mini-PCIe | N | 2G/IoT |
| Quectel EC25 | v6.42 | ppp/LTE interface, there is page in wiki about Quectel ppp mode: article RouterOS v6 CDC-ECM mode - LTE interface receive address in modems internal network. RouterOS v7 MBIM mode - LTE interface uses APN IP address. |
MiniPCI-e | ? | LTE |
| Quectel EG25-G | 6.48.3 | RouterOS v6 CDC-ECM mode - LTE interface receive address in modems internal network. RouterOS v7 MBIM mode - LTE interface uses APN IP address. In some boards may be required to disable SIM hot plug detection: /interface lte set [find] modem-init="AT+QSIMDET=0,1" |
MiniPCI-e | GSM, 3G, LTE | |
| Quectel EM12-G | v7.1beta5 | MBIM driver | m.2 | Y | 3G,LTE |
| Quectel EP06 | v6.42 | ppp/LTE interface, there is page in wiki about Quectel: article | MiniPCI-e | ? | LTE |
| Quectel RM500Q-GL | v7.1beta6 | MBIM driver | m.2 | Y | 3G, LTE, 5G |
| Quectel RM502Q-AE | v7.1beta5 | MBIM driver | m.2 | Y | 3G, LTE, 5G |
| Quectel UC15 | v6.xx | Works, ppp interface | MiniPCI-e | 3G | |
| Quectel UC20 | v6.xx | Works, ppp interface | MiniPCI-e | 3G | |
| R11e-LTE | v6.39.2 | LTE interface. Supports multiple APN passthrough. | MiniPCI-e | Y | LTE |
| Sierra Netgear AirCard 320U | 6.41 | Customer tested the modem with firmware 03.05.23 | USB | N | LTE |
| Sierra wireless MC73xx | v6.xx(ppp) v7.xx (LTE) | Works! PPP interface. And starting with v7.xx it will support LTE interface. MC7304 tested with firmware SWI9X15C_05.05.67.00 | MiniPCI-e | N | LTE |
| Sierra Wireless MC7430 | v6.xx and higher | Data channel 2, Info channel 2, Modem init: AT+CGATT=0, Dial-command: AT+CGATT=1;D*99#, also needs 3.0 pins isolated (PINS:23,25,27,31,33) | MiniPCI-e | LTE | |
| Sierra Wireless MC74xx | v7.1 | Basic functionality support for modems with MBIM interface/USB composition | mini-PCIe | ||
| Sierra Wireless MC7455 | v7.3beta37 | MBIM mode with extended support for USB compositions: - 1009 - diag,modem,mbim - 100D - diag,nmea,modem,mbim |
mini-PCIe | ||
| Sierra Wireless MC7710/MC7700/MC7750 | v5.25, v6.0 and 6.40RC43 | If modem uses firmware 3.5 it should be upgraded to 3.5.23.2 firmware release in order to work in RouterOS correctly again. | MiniPCI-e | N | LTE |
| SIMcom SIM5360 | v6.xx | Works! Using PPP interface, vendor-id="0x05c6" device-id="0x9000" | MiniPCI-e / USB w/ converter | 3G | |
| SIMcom SIM7100 | v6.xx(ppp) v7.xx (LTE) | Works! PPP interface. And starting with v7.xx it will support LTE interface. vendor-id="0x1e0e" device-id="0x9001" | MiniPCI-e / USB w/ converter | ? | LTE |
| SXT LTE | v6 | LTE interface. Old version of SXT LTE | Built-in | N | LTE |
| SXT LTE kit | v6.42 | LTE interface from R11e-LTE/R11e-LTE-US mini-pcie module | Built-in | Y | LTE |
| Tele2.ru LTE-D402 | v6.47 | Config-less LTE interface | N | ||
| Telecom NZ T-Stick ZTE MF-181 | v6.0rc13 | Data Channel=2, Info Channel=2, APN internet.telecom.co.nz, PHONE=*99#. Tested ok for both data and SMS on CCR1016-12G | USB | 3G | |
| Telit FN980m | v7.5 | AT#USBCFG=2 | m.2 | LTE, 5G | |
| Telit LE910 | v6.xx | ppp interface, vendorid=0x1bc7 deviceid=0x1201 | MiniPCI-e | ? | LTE |
| Telit LE910C1 | v6.46 | Non-configurable from RouterOS | MiniPCI-e | LTE | |
| Telit LM940 | v6.44 | LTE interface in some cases needs 3.0 pins isolated (PINS:23,25,27,29,31,33) | MiniPCI-e | Y | LTE |
| Telit LM960 | v6.46 | LTE interface in some cases needs 3.0 pins isolated (PINS:23,25,27,29,31,33) | MiniPCI-e | Y | LTE |
| TPS (Turning Point Solution) GCT450 | v6.48 | Config-less LTE interface | MiniPCI-e | N | |
| Vodafone (Huawei) K4203 | v7.xx | Not supported in ROS v6, but as this modem supports MBIM drivers support will be possible in ROS v7. | USB | ? | LTE |
| Vodafone K4201-Z | v6.8 | Some settings are ignored. LTE interface. | USB | ? | LTE |
| Vodafone K4305 | v6.7 | Some settings are ignored. | USB | ? | LTE |
| Vodafone K5160 | v6.37 | Some settings are ignored. | USB | ? | LTE |
| Yota LU150 | v5.22 and v6.4 | Some settings are ignored. Works in Russian markets. | USB | ? | LTE |
| Yota wifi modem | v6.7 | Some settings are ignored. Works in Russian markets. | USB | ? | LTE |
| Yota WLTUBA-107 | v6.0 | Some settings are ignored. Works in Russian markets. | USB | ? | LTE |
| ZTE 821D | v6.x | Set Info channel = 1, Data channel = 3, Dial command=ATDT | USB | 3G | |
| ZTE AC5730 | v6.x | USB | 3G | ||
| ZTE ME3630-E | v6.40RC26 | ppp and LTE interface | MiniPCI-e | ? | LTE |
| ZTE MF110 | v6.28 and higher | Set info channel = 2, data channel = 2, Dial command=ATM1L3DT | USB | 3G | |
| ZTE MF823 | v6.8 | Some settings are ignored. For some devices it's needed to enter in FACTORY mode to change operating state. | USB | ? | LTE |
| ZTE MF825A | v6.xx | Some settings are ignored. | USB | ? | LTE |
| ZTE MF827 | v6.8 | Some settings are ignored. | USB | ? | LTE |
| ZTE MF90 | v6.44beta32 and higher | LTE interface | USB | N | LTE |
| Anteniti 3372h-153 |
并非所有的调制解调器都被列出。本地化和锁定的设备可能有兼容性问题。所有使用MBIM驱动的调制解调器都应该在RouterOS v7 上工作。

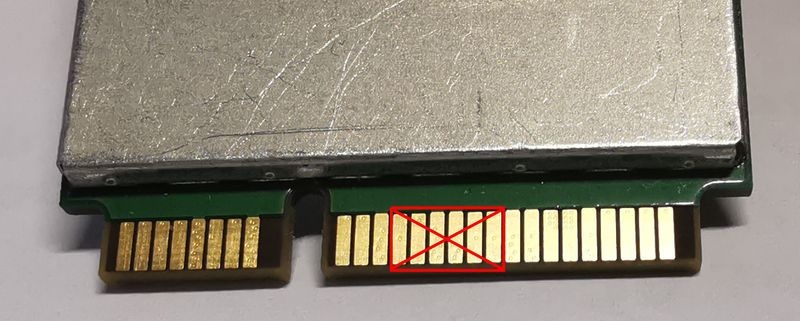

对于一些支持USB3.0的调制解调器，在某些情况下需要隔离USB3.0引脚以确保正确的初始化。
SFP模块
| 品牌 | 型号 | 速率 | 连接器\/线缆类型 | 波长 | 测试对象 | 工作\/ 不工作 |
|---|---|---|---|---|---|---|
| MikroTik | S-85DLC05D | 1,25G | Dual LC, MM | 850nm | *Check: SFP/SFP+ compatibility reference table | Natively supported |
| MikroTik | S-31DLC20D | 1,25G | Dual LC, SM | 1310nm | *Check: SFP/SFP+ compatibility reference table | Natively supported |
| MikroTik | S-35LC20D | 1,25G | BiDi LC, SM | Tx:1310nm/Rx:1550nm | *Check: SFP/SFP+ compatibility reference table | Natively supported |
| MikroTik | S-53LC20D | 1,25G | BiDi LC, SM | Tx:1550nm/Rx:1310nm | *Check: SFP/SFP+ compatibility reference table | Natively supported |
| MikroTik | S-RJ01 | 1000/100/10 | RJ45, Cat5/Cat6 | N/A | *Check: SFP/SFP+ compatibility reference table | Natively supported |
| Axiom | AXG91632 | 1000BASE-LX | Dual LC | 1310nm | CRS125-24G-1S-RM | Works! |
| Finisar | FCLF-8521-3 | 10/100/1000 | RJ45, Cat6 | N/A | RB2011LS-IN | Works! |
| Finisar | FCLF-8521-3-MD | 10/100/1000 | RJ45, Cat6 | N/A | RB2011LS-IN | Works! |
| Finisar | FTRJ8519P1BNL-B1 | 10/100/1000 1.25 Gb/s 1000Base-SX Ethernet | Dual LC, MM | 850nm | RB2011LS-IN | Works! |
| Finisar | FTLF8519P2BNL | 10/100/1000 1.25 Gb/s 1000Base-SX Ethernet | Dual LC, MM | 850nm | RB2011LS-IN | Works! |
| Finisar | FTRJ1319P1BTL | 1.25Gb/s 1000Base-LX Ethernet | Dual LC, SM | 1310nm | CCR1009-8G-1S-1S+ and CCR1009-7G-1C-1S+ | Works! |
| Unica | SFP-1.25G-T | 1000M | RJ45, Cat6 | N/A | RB2011LS-IN | Works! |
| Dell | FTLX8571D3BCL | 1,25G | Dual LC, MM | 850nm | RB2011LS-IN | Works! |
| Unica | GP-3124-L2CD-C | 1,25G | Dual LC, MM | 1310nm | RB2011LS-IN | Works! |
| Cisco | GLC-T | 1.25G | RJ45, Cat6 | N/A | RB2011LS-IN | Works! |
| Cisco | GLC-SX-MM | 1000BASE-SX SFP transceiver module for MMF, 1.25G | Dual LC, MM | 850nm | RB2011LS-IN | Works! |
| Cisco | SFP-GE-L | 1000BASE-LX/LH SFP transceiver module for SMF, 1.25G | Dual LC, SM | 1300nm | Various MT hardware | Works! |
| 6COM | 6C-SFP-T | 10/100/1000 | RJ45, Cat6 | N/A | RB2011LS-IN | Works! |
| 6COM | 6C-WDM-0210BSD | 1,25G | BiDi SC, SM | Tx:1550nm/Rx:1310nm | RB2011LS-IN | Works! |
| 6COM | 6C-WDM-0210ASD | 1,25G | BiDi SC, SM | Tx:1310nm/Rx:1550nm | RB2011LS-IN | Works! |
| 6COM | 6C-SFP-0310D | 1,25G | Dual LC, MM | 1310nm | RB2011LS-IN | Works! |
| 6COM | 6C-SFP-0301D | 1,25G | Dual LC, MM | 850nm | RB2011LS-IN | Works! |
| Ingellen | INSP-T(10/100/1000) | 10/100/1000 | RJ45, Cat6 | N/A | RB2011LS-IN | Works! |
| Ingellen | INSPL-53-BX | 1,25G | BiDi LC, MM | 1550/1310 | RB2011LS-IN | Works! |
| Ingellen | INSPL-35-BX | 1,25G | BiDi LC, MM | 1310/1550 | RB2011LS-IN | Works! |
| Ingellen | INSP-LX-SM | 1,25G | Dual LC, SM | 1310nm | RB2011LS-IN | Works! |
| Ingellen | INSP-SX-MM | 1,25G | Dual LC, MM | 850nm | RB2011LS-IN | Works! |
| AXCEN | AXGT-R1T4-05I1 | 10/100/1000 | RJ45, Cat6 | N/A | RB2011LS-IN | Works! |
| AXCEN | AXGD-37А4-0531 | 1,25G | BiDi LC, MM | Tx:1550nm/Rx:1310nm | RB2011LS-IN | Works! |
| AXCEN | AXGD-16А4-0531 | 1,25G | BiDi LC, MM | Tx:1310nm/Rx:1550nm | RB2011LS-IN | Works! |
| AXCEN | AXGD-1354-0531 | 1,25G | Dual LC, MM | 1310nm | RB2011LS-IN | Works! |
| AXCEN | AXGD-5854-0511 | 1,25G | Dual LC, MM | 850nm | RB2011LS-IN | Works! |
| TP-Link | TL-SM311LS | 1,25G | Dual LC, SM | 1310nm | RB2011LS-IN | Works! |
| TP-Link | TL-SM311LM | 1,25G | Dual LC, MM | 850nm | CCR1036 12G-4S | Works! |
| OPTIC | OPTIC-SFP-3524S-02-SC | 1,25G | BiDi SC, SM | Tx:1310nm/Rx:1550nm | RB2011UAS-RM, RB260GS | Works! |
| OPTIC | OPTIC-SFP-5324S-02-SC | 1,25G | BiDi SC, SM | Tx:1550nm/Rx:1310nm | RB2011UAS-RM, RB260GS | Works! |
| OPTIC | OPTIC-SFP-S1203-L3302-LC | 1,25G | BiDi LC, SM | Tx:1310nm/Rx:1550nm | RB2011UAS-RM, RB260GS | Works! |
| OPTIC | OPTIC-SFP-S1205-L3302-LC | 1,25G | BiDi LC, SM | Tx:1550nm/Rx:1310nm | RB2011UAS-RM, RB260GS | Works! |
| ROBOFiber | SFP-7120-55 | 1,25G | Dual LC, SM | 1550nm | CCR1036-12G-4S, RB2011 | Works! |
| ROBOFiber | SFP-7120-WA | 1,25G | BiDi LC, MM | Tx:1490nm/Rx:1550nm | CCR, RB2011 | Works! |
| ROBOFiber | SFP-7120-WB | 1,25G | BiDi LC, MM | Tx:1550nm/Rx:1490nm | CCR, RB2011 | Works! |
| Enguity | SFP-3647603KM.b1310 XT | 1,25G | BiDi LC, SM | Tx:1310nm/Rx:1550nm | CCR, RB2011, RB260GS | Works! |
| Enguity | SFP-3647603KM.b1550 XT | 1,25G | BiDi LC, SM | Tx:1550nm/Rx:1310nm | CCR, RB2011, RB260GS | Works! |
| Enguity | SFP-3647610KM.b1490 XT | 1,25G | BiDi LC, SM | Tx:1490nm/Rx:1550nm | CCR, RB2011, RB260GS | Works! |
| Enguity | SFP-3647610KM.b1550 XT | 1,25G | BiDi LC, SM | Tx:1550nm/Rx:1490nm | CCR, RB2011, RB260GS | Works! |
| AdvOptics MSA | GLC-SX-MM | 1,25G | BiDi LC, MM | Tx:1310nm/Rx:1310nm | CCR, RB2011, RB260GS | Works! |
| AdvOptics MSA | GLC-ZX-SM | 1,25G | BiDi LC, SM | Tx:1310nm/Rx:1310nm | CCR, RB2011, RB260GS | Works! |
| Proline | GLC-BX-D20-PRO | 1,25G | BiDi LC, SM | Tx:1490nm/Rx:1310nm | CRS125 | Works! |
| Proline | GLC-BX-D40-PRO | 1,25G | BiDi LC, SM | Tx:1310nm/Rx:1490nm | CRS125 | Works! |
| Foundry Networks | E1MG-BXU-AC | 1,25G | BiDi LC, SM | Tx:1310nm/Rx:1490nm | RB3011UiAS, hAP ac | Works! |
| Avago | SFBR-5799APZ | 1,25G | Dual LC, MM | 850nm | CRS326, CRS112 | Works in 1Gbps mode! |
| Eltex | NTU-SFP-100 | 1,25G | SC | N/A | RB4011iGS+ | Works! |
